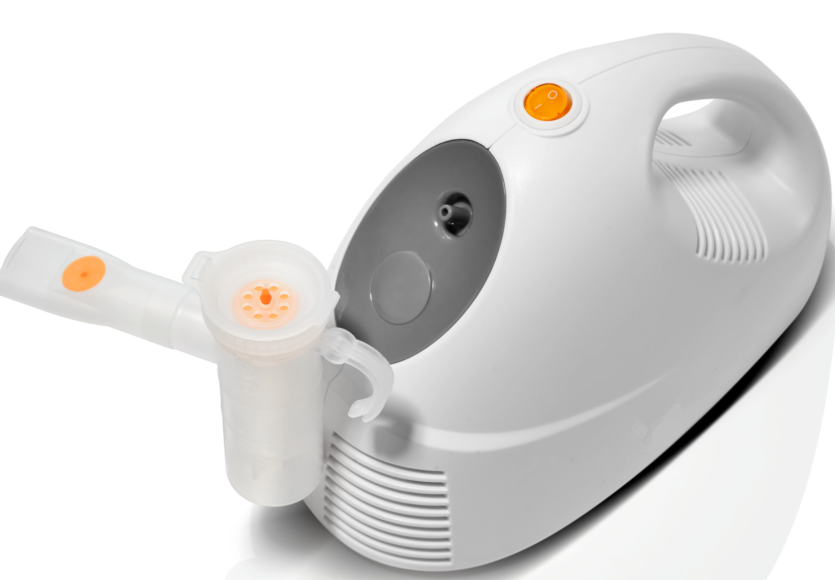

Air Compressor Nebulizer

Air Compressor Nebulizer System

Specifications:

Power:220V,50Hz or based on your requirements

Power Consumption:60W+-10%

MMAD:2.44μm

Compressor flow:8-10L

Max Nebulization Rate:0.35ml/min

Particle Size:0.5-6μm

Noise:<55db

Weight:1.65kgs

An air compressor nebulizer is a medical device that uses a compressor to turn liquid medicine into a fine mist that can be inhaled into the lungs to treat respiratory conditions. The compressor creates high-pressure air, which is then directed through a nebulizer cup containing liquid medication, converting it into a breathable aerosol for patients with diseases like asthma or COPD.

How it Works

Air Compression: An electrical air compressor generates pressurized air.

Nebulizer Cup: This pressurized air is directed through a tube to a nebulizer cup that holds the liquid medication.

Mist Formation: The air flow creates a fine mist of the medicine.

Inhalation: The patient then inhales this mist through a mask or mouthpiece, allowing the medication to reach the lungs.

Purpose and Uses

Medication Delivery:

It delivers medication directly to the lungs for various respiratory illnesses.

Respiratory Conditions:

It is commonly used for asthma, chronic obstructive pulmonary disease (COPD), cystic fibrosis, and other respiratory diseases.

Symptom Relief:

It helps relieve respiratory symptoms and loosen lung secretions.

Components of an Air Compressor Nebulizer

Air Compressor:

The power unit that provides the air.

Nebulizer Cup:

Holds the liquid medicine and converts it into a mist.

Tubing:

Connects the compressor to the nebulizer cup.

Mask or Mouthpiece:

Used by the patient to inhale the mist.

Key Characteristics

Inhalation of Mist:

The key feature is its ability to create a fine, breathable mist from liquid medication.

Treatment for Respiratory Issues:

It is a vital tool for delivering medicine to the lungs for patients with lung diseases.

Ease of Use:

Many devices are designed for home use, making treatments convenient.

The basic steps to set up and use your nebulizer are as follows:

Wash your hands.

Connect the hose to an air compressor.

Fill the medicine cup with your medicine. ...

Attach the other end of the hose to the mouthpiece and medicine cup.

Turn on the nebulizer machine.

Place the mouthpiece in your mouth.

An air compressor nebulizer uses pressurized air to convert liquid medication into a fine, breathable mist. This mist is then inhaled directly into the lungs through a mouthpiece or mask to treat respiratory conditions like asthma, COPD, and cystic fibrosis.

Key features

Targeted medication delivery: Unlike oral medications, a nebulizer delivers medicine directly into the airways and lungs, minimizing systemic side effects and offering faster relief during flare-ups.

Easy to use: The therapy is user-friendly and requires only normal, calm breathing, making it suitable for patients who have difficulty using inhalers, including infants, young children, the elderly, or those with severe respiratory distress.

Handles multiple medications: A compressor nebulizer can be used to deliver a wide variety of medications, including bronchodilators, antibiotics, and corticosteroids.

Consistent dose: The device provides a continuous and steady flow of medication during a treatment session, ensuring the full prescribed dose is administered.

Durability and cost-effectiveness: Compressor nebulizers are generally durable, reliable, and less expensive than other types, such as mesh nebulizers.

Potential drawbacks

Takes longer to use: A typical treatment can take between 5 and 20 minutes, which is longer than using a standard inhaler.

Less portable: Traditional compressor nebulizers are larger, bulkier tabletop units that need an electrical outlet to operate. While portable, battery-powered models are available, they are often louder than modern alternatives.

Can be noisy: The compressed air used by the machine often creates a noticeable noise during operation.

Regular maintenance required: The nebulizer cups, tubing, and mouthpiece must be thoroughly cleaned and disinfected after each use to prevent the growth of bacteria and reduce the risk of infection.

Comparison to other nebulizer types

Compressor nebulizers are a type of jet nebulizer, which uses compressed gas to aerosolize the medicine. Other types of nebulizers have different mechanisms and features:

Ultrasonic nebulizers: Use high-frequency vibrations to create mist, offering quieter and sometimes faster treatment, but they are often more expensive.

Mesh nebulizers: Push liquid medication through a fine mesh to create an aerosol. They are very compact, quiet, and efficient, but are typically the most expensive and the mesh can be prone to clogging.
