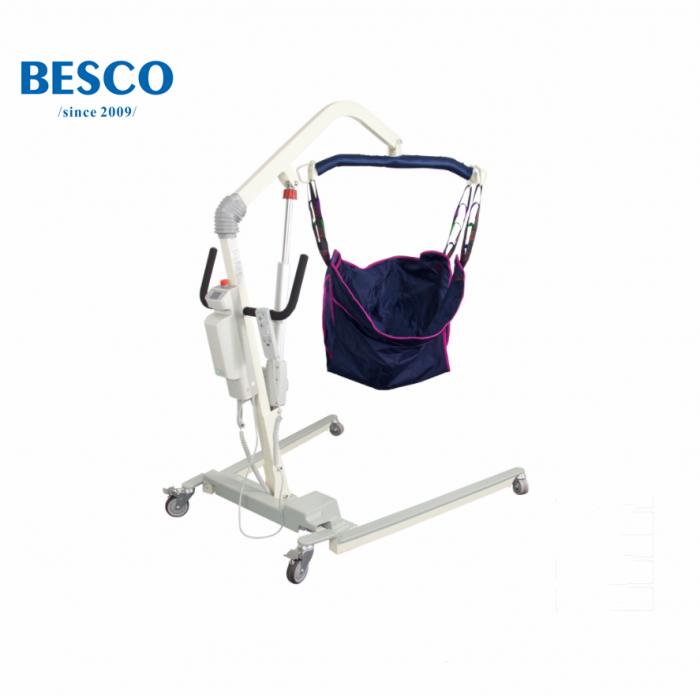

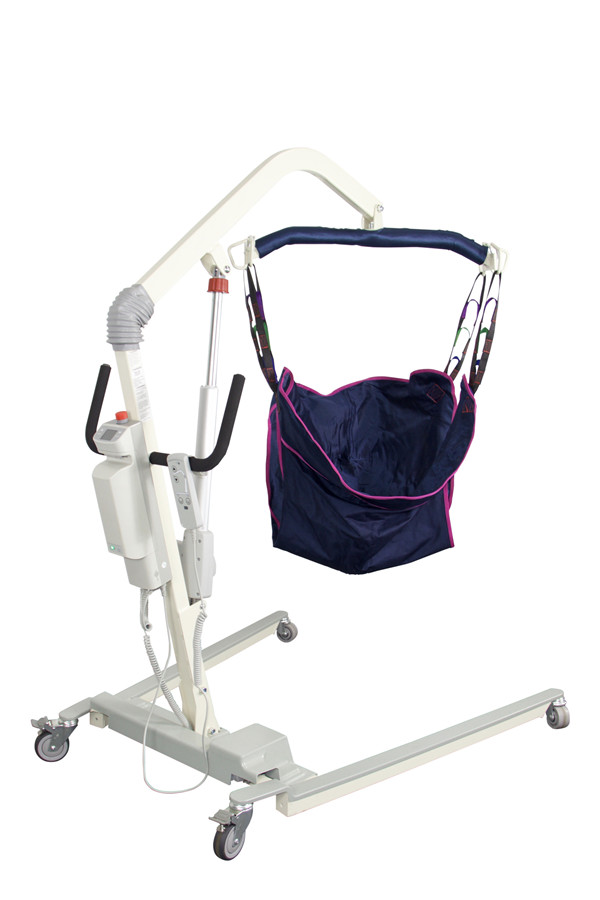

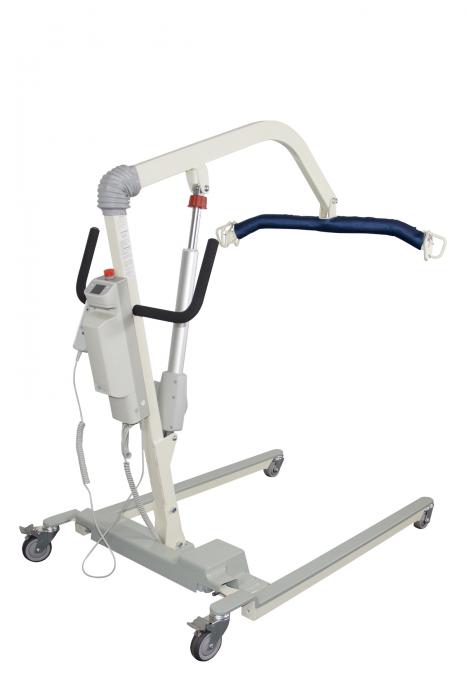

Electric Hoyer Lifts

electric hoyer lifts

electric hoyer lifts 1.jpg"/>

1) Steel Tubes with Powder Paint Finished.

2) Electric & Manual Control for the Height Adjustment: 810-1880mm.

3) Backup lithium Battery.

4) 4pcs of Swivel Casters, 2pcs with Brake.

5)  electric control for the leg width by actuator during  730-1140mm

6) working Load: 600lbs

Application:

 Used for transferring and weighing the critically ill patients, emergency surgery patients,

 special patients and bedridden patients.

Function:

 • Height adjustment: 810~1890mm.

 • The adjustable width between legs: 730~1140mm, which can be adjusted by actuator.

 The legs can be opened to insert a wheelchair or a hospital bed.

 • Specially made for lifting, moving and transferring heavy weighted patients with a maximum

 working load up to 600lbs.

 • Electric and manual control for the height adjustment.

 • Emergency stop function and backup battery.

 • Dual actuator.

 • 4 pcs of swivel casters, 2 pcs with brake.

 • The straps in different colors enable the users to adjust the sling length easily.

 • Battery Capacity :30 - 40 times

Electric Hoyer lifts, also known as patient lifts, are devices that use an electric motor to lift and transfer patients, typically from one surface to another (e.g., bed to wheelchair). They are designed to assist caregivers in safely and efficiently moving patients, reducing the risk of injury to both the patient and caregiver.

Key Features and Benefits:

Electric Operation:

Electric Hoyer lifts use a battery-powered or plug-in system to power the lifting mechanism, making them easier to operate than manual lifts.

Safety:

They incorporate various safety features like emergency stop buttons, adjustable base, and secure slings to ensure safe patient transfers.

Reduced Caregiver Strain:

By automating the lifting process, electric Hoyer lifts minimize the physical strain on caregivers, reducing the risk of back injuries and fatigue.

Patient Dignity:

These lifts can help patients maintain their independence and dignity by enabling them to move with greater ease and comfort, according to Mobility Plus Colorado.

Versatility:

They are designed to be versatile, suitable for use in various settings like homes, nursing facilities, and hospitals, and can be used to transfer patients between different surfaces.

Different Models:

Electric Hoyer lifts come in various models, including portable and foldable ones for easy storage and transport, and heavy-duty models for high-volume use in facilities, says Med Mobility Homecare.

How they work:

Slings:

Patients are secured in a sling, which is attached to the lift's spreader bar.

Lifting Mechanism:

The electric motor powers a pulley system that raises or lowers the patient.

Transfer:

The lift is then used to move the patient to the desired location, such as a bed, chair, or wheelchair.

Lowering and Unhooking:

Once positioned, the patient is gently lowered and the sling is unhooked.
